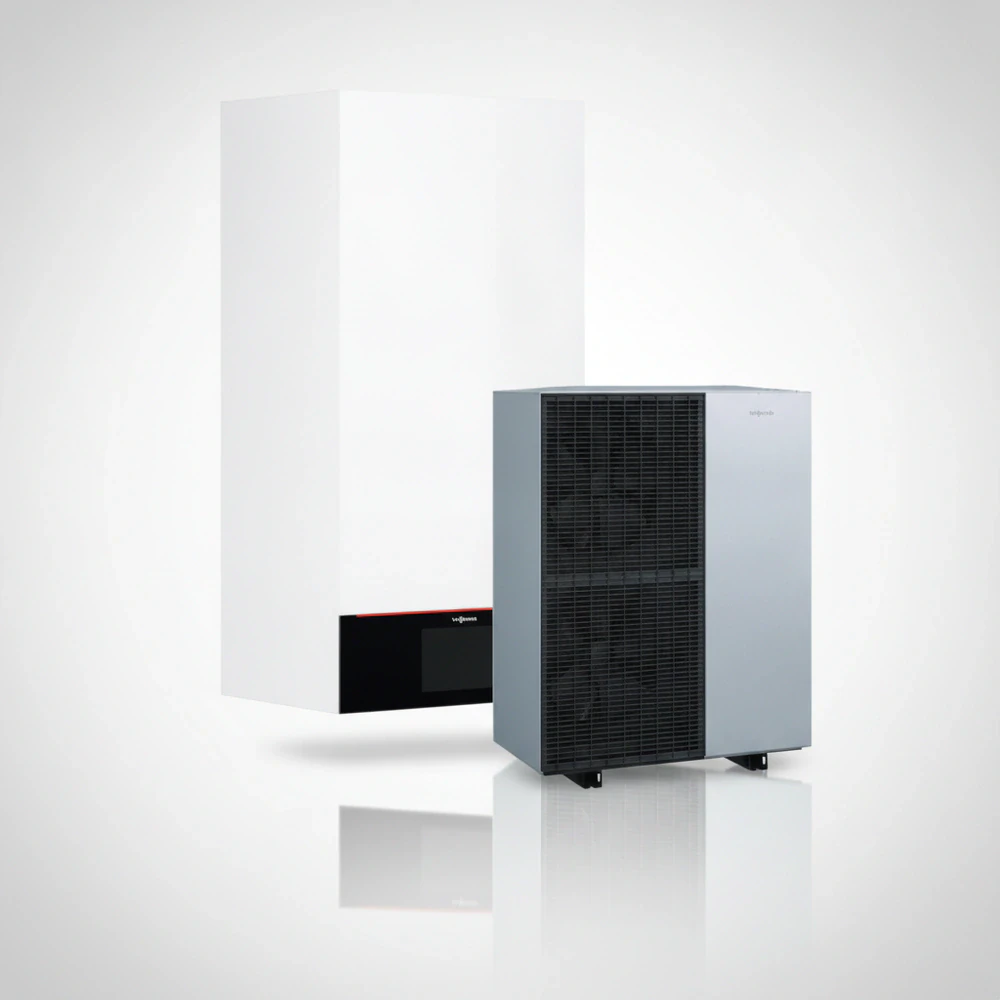

Discover the advanced Type AWO-M-E-AC-AF 151.A Heat Pump, a monoblock system designed for efficient heating, cooling, and domestic hot water (DHW) provision. This dual indoor and outdoor unit system offers a versatile solution with a maximum flow temperature of up to 70 °C, suitable for both new constructions and modernization projects.
Key Features
Advanced Monoblock Design: Includes a heat pump control unit for streamlined efficiency.
Energy-Efficient Operation: Features a high-efficiency circulation pump and a 4-3-way diverter valve for optimized performance.
Integrated Water Heating: Comes with an instantaneous water heater and a buffer cylinder for consistent hot water supply.
User-Friendly Interface: Boasts a 7-inch color touchscreen and Wi-Fi connectivity for easy control and monitoring.
Low Noise Operation: Equipped with a low-noise mode for the outdoor unit, ensuring quiet performance.
Eco-Friendly Refrigerant: Utilizes R290 refrigerant with a low Global Warming Potential (GWP) for environmental responsibility.
Optimized Energy Management: Can be integrated with photovoltaic systems for enhanced energy savings.
Viessmann Technology: Includes features like the Viessmann Hydro AutoControl for self-optimizing flow rate control and connectivity to the ViCare app for system management.
Versatile Indoor and Outdoor Colors: Comes in Vitopearlwhite for the indoor unit and Vitosilver for the outdoor unit.
Comprehensive Package: The standard delivery includes a complete monoblock heat pump with essential components like valves, sensors, and expansion vessels.
Important Installation Notes
Professional Commissioning Required: Must be installed by Viessmann Technical Service or a certified specialist.
Accessories for Installation: A hydraulic connection set and, for modernized systems, a dirt separator with a magnet are necessary.
Elevate your home’s heating and cooling efficiency with the Type AWO-M-E-AC-AF 151.A Heat Pump, a testament to innovation and sustainability.
Specification
Vitocal 150 A10
Vitocal 150 A13
Vitocal 150 A16
Unit
Heating Output
7.3-9.7
8.1-11.1
9.1-12.4
kW
Coefficient of performance at A7
5.0
4.9
4.9
Min./max. output range A7
3.6 – 12.0
3.0 – 13.4
3.3 – 14.9
kW
Flow Temperature
70
70
70
°C
Sound Power Level
59
59
59
dB(A)
Cooling Capacity
9.6
11.0
13.2
kW
Energy efficiency ratio (EER)
4.4
4.0
3.6
Max. cooling capacity
12.0
14.0
17.0
kW
Indoor unit width
450
450
450
mm
Indoor unit height
920
920
920
mm
Indoor unit length
360
360
360
mm
Indoor unit weight
47
47
47
kG
Outdoor unit width
1144
1144
1144
mm
Outdoor unit height
1382
1382
1382
mm
Outdoor unit length
600
600
600
mm
Outdoor unit weight
191
191
191
kG
Energy efficiency ƞs at W35
190
178
178
%
Energy efficiency ƞs at W55
145
141
141
%
Rated heating output A2/W35
5.8
6.7
7.6
kW
Coefficient of performance at A2
4.1
3.8
3.8
Min./max. output range A2
2.2-11.0
2.6-12.3
3.0-13.7
kW
Coefficient of Performance (COP): Measured at operating point A7/W35 according to EN 14511 standards during rated heating output.
Output Range: Minimum and maximum output at operating point A7/W35.
Sound Power Level: Assessed according to EN ISO 12102/EN ISO 9614-2, with accuracy class 3, specifically in night mode.
Cooling Capacity & EER: Evaluated at operating point A35/W18 in compliance with EN 14511 standards.
Energy Efficiency (ƞs): Heating performance is calculated in accordance with Commission Regulation (EU) No 813/2013, considering average climatic conditions for low (W35) and medium (W55) temperature applications.
